push to connect fittings 5 way

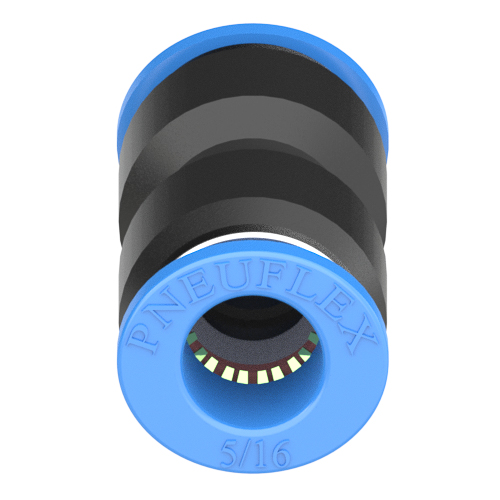

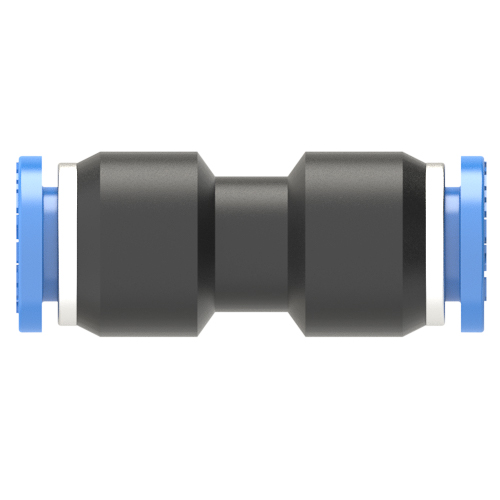

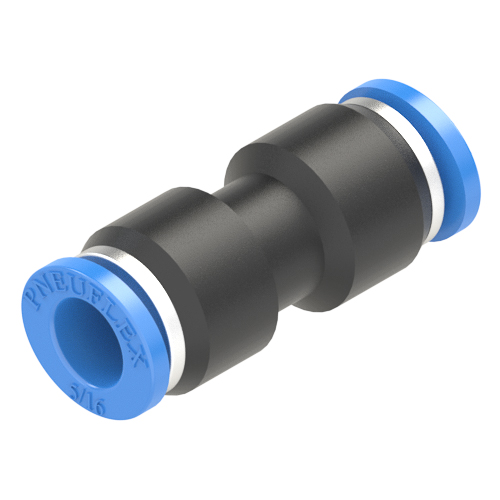

5/16" union straight push to connect fitting is widely used in pneumatic tubing systems and compressed air circuits. The pneumatic tubing connection can be polyurethane (PU) tubing, nylon (PA) tubing, polyethylene (PE) tubing and teflon (PTFE) tubing. The two push to connect tube sizes are both 5/16". The shape of release sleeve can be oval shape and round shape.

5/16 union straight push to connect fitting 5/16 push to connect fitting 5/16 tube union straight 5/16 tube union straight push to connect fitting
产品参数
适配管外径: 5/16 inch
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
产品类别: PU 插管直通
