push to connect fittings 5 way

In pneumatic applications, 3/8 inch union straight push to connect fitting is used to connect two 3/8" O.D tubings in same direction. Quick and simple tube connection and disconnection benefit by design of convenient one touch release button. And internal design of stainless steel lock-claw offers a secure connections that hold the plastic tube firmly. Working pressure is 0-1MPa.

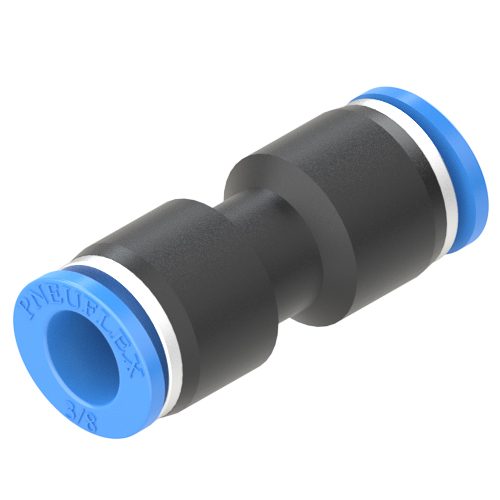

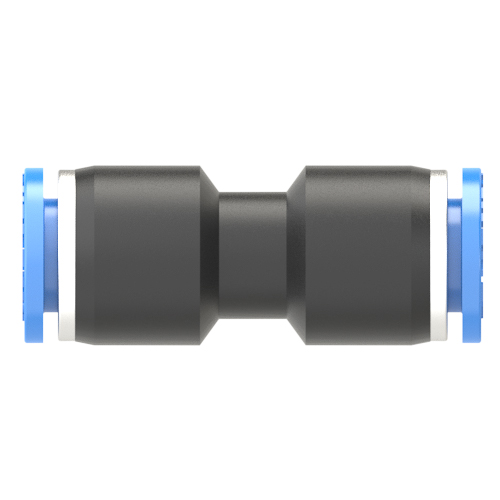

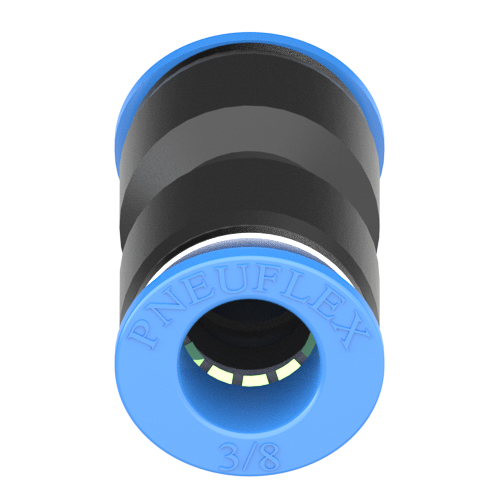

3/8 union straight push to connect fitting
产品参数
适配管外径: 3/8 inch
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
产品类别: PU 插管直通
