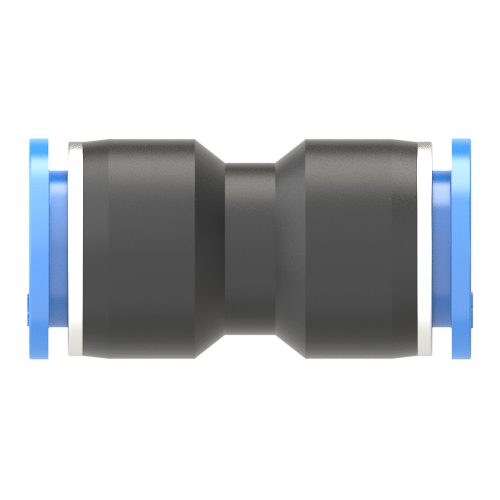

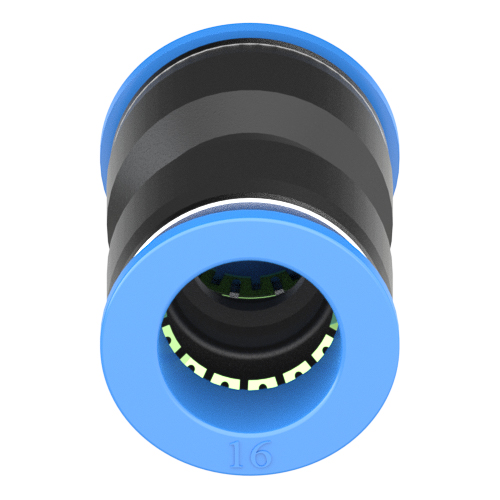

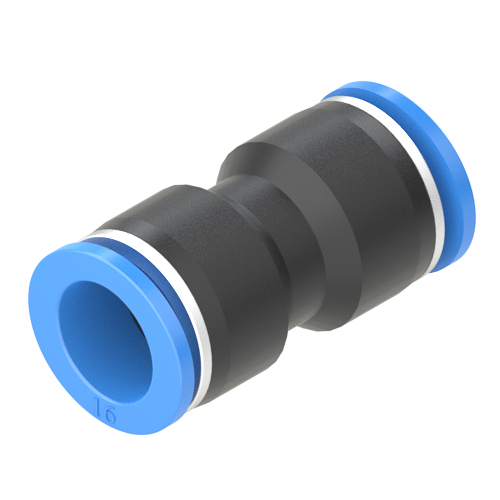

PU 16 | 16mm Union Straight | 16mm Push to Connect Fitting

16mm union straight push to connect fitting is common used size in pneumatic applications and tubing systems. Pneumatic tubing connection can be polyurethane (PU) tubing, polyethylene (PE) tubing, nylon (PA) tubing and teflon (PTFE) tubing. The shape of release sleeve oval shape and round shape. Working pressure is 0-150 psi.

产品参数

适配管外径:	16mm
壳体材质:	PBT 塑料
螺纹材质:	电镀铜或酸洗
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...

询问价格
