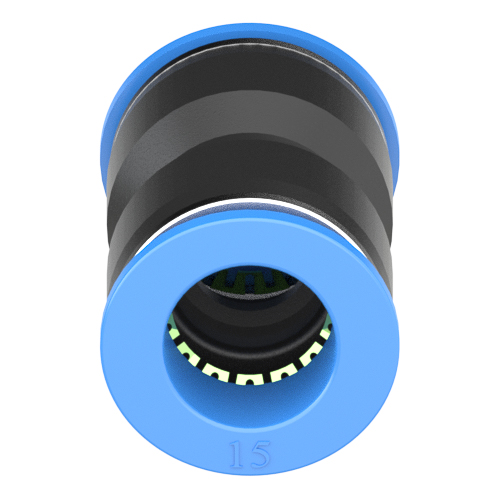

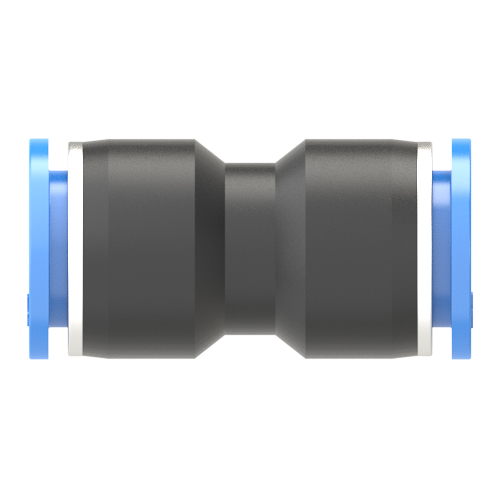

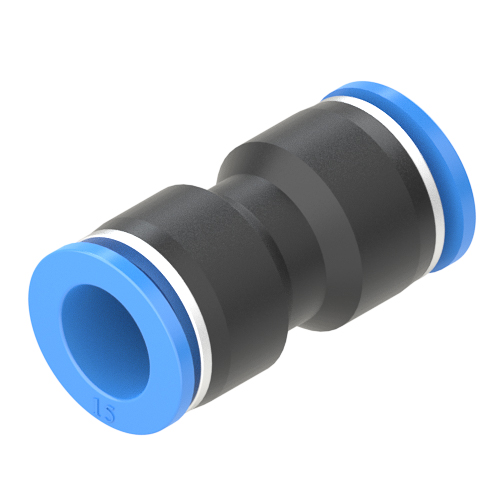

PU 15 | 15mm Union Straight | 15mm Push to Connect Fitting

15mm union straight push to connect fitting is easy to install and release with the tubes. To connect, simply push the tubing until it bottoms and stainless steel teeth to grip onto the tubing and hold it firmly. To release the tubing, press the release sleeve on the fitting and you can easily pull the tube out. 15mm push to connect fitting is made of PBT plastic body and POM release sleeves.

产品参数

适配管外径:	15mm
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
