push to connect fittings 5 way

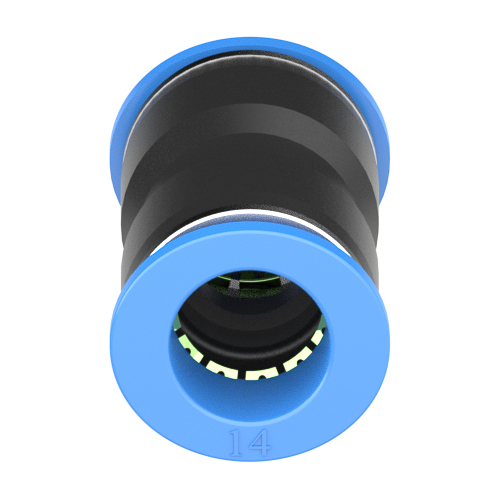

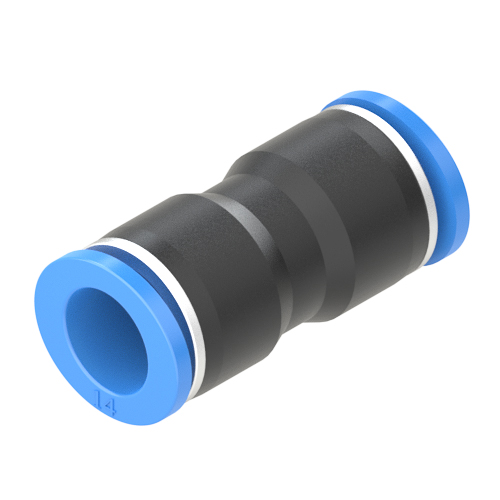

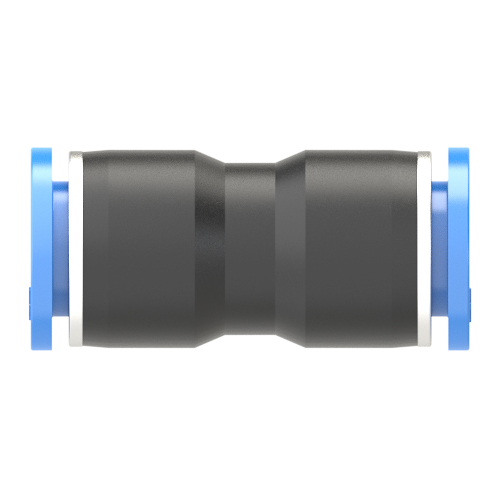

14mm union straight push to connect fitting is used for connecting two 14mm O.D tubes in the same direction. 14mm push to connect fitting is made of PBT plastic body. Internal design of stainless steel lock-claw offers a secure connections that hold the plastic tube firmly.

14mm union straight push to connect fitting 14mm tube push to connect fitting 14mm push to connect fitting 14mm union straight
产品参数
适配管外径: 14mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
产品类别: PU 插管直通
