push to connect fittings 5 way

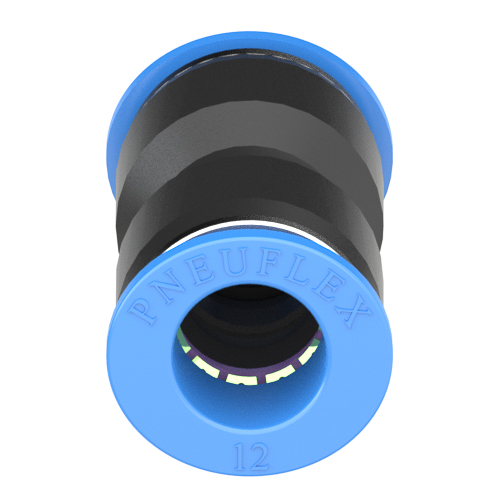

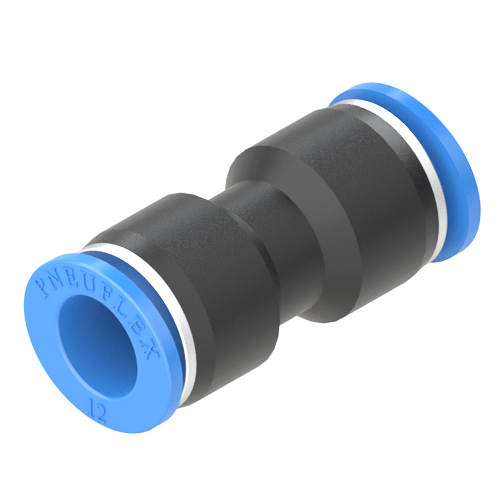

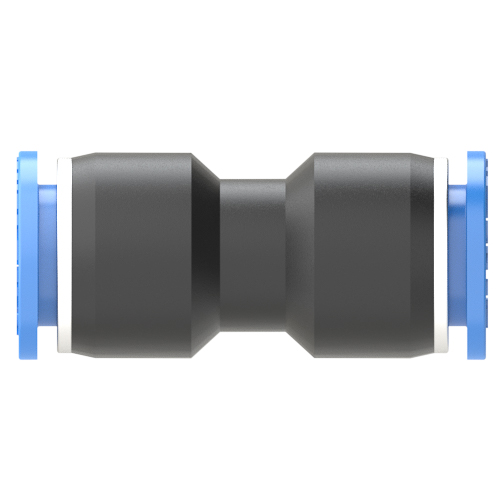

12mm union straight push to connect fitting is widely used to connect two tube of same 12mm diameter in tubing systems. The stainless steel lock claw inside design ensures superior clamping with various types of tubing. Oval shape release sleeve and round shape release sleeve can be selection. Multiple color release buttons are available.

12mm union straight push to connect fitting 12mm push to connect fitting 12mm union straight 12mm tube push to connect fitting
产品参数
适配管外径: 12mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
产品类别: PU 插管直通
