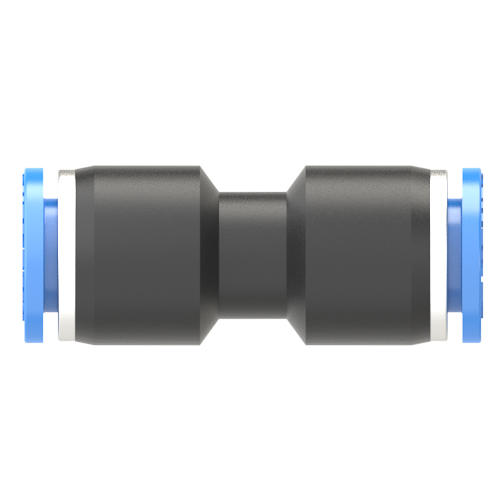

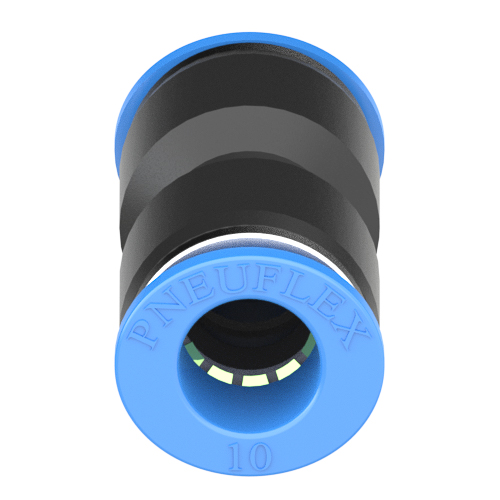

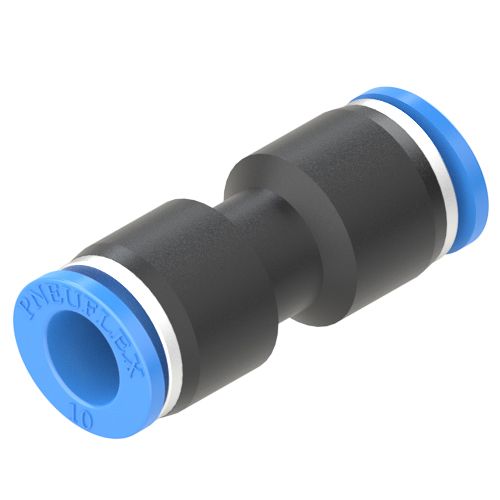

PU 10 | 10mm 插管直通 气接头 快插式气动接头 气管接头

10mm union straight push to connect fitting is used to connect two tubes of 10mm in the same direction. 10mm push to connect fitting union straight equipped with a convenient one touch release button that provides a easy and quick tubing connection and disconnection. The body is made of PBT plastic.

产品参数

适配管外径:	10mm
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...

询问价格
