push to connect fittings 5 way

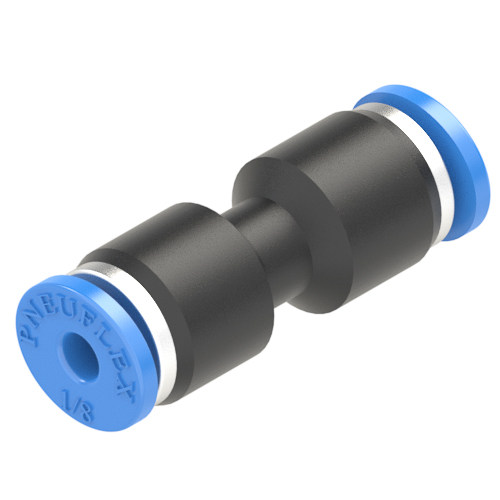

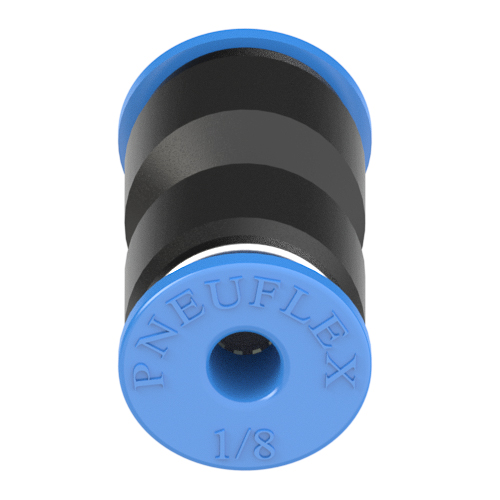

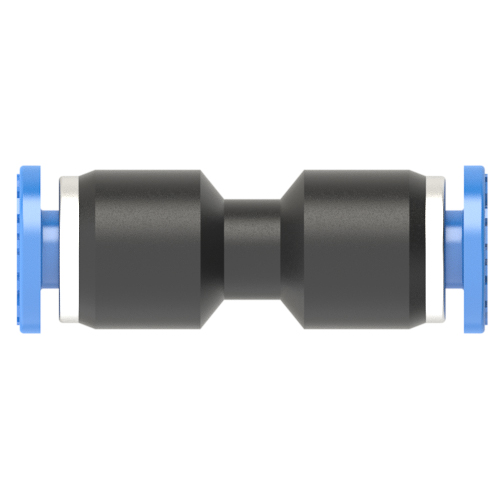

1/8 inch union straight push to connect fitting is widely used in pneumatic system. 1/8 inch push to connect fitting is used for connecting two 1/8 inch O.D tubes at two ends in the same direction and allows to connect and disconnect 1/8 tubing easily without hurting 1/8 inch tubing.

1/8 inch union straight push to connect fitting 1/8 inch push to connect fitting 1/8 inch push to connect fitting 1/8 push to connect fitting
产品参数
适配管外径: 1/8 inch
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
产品类别: PU 插管直通
