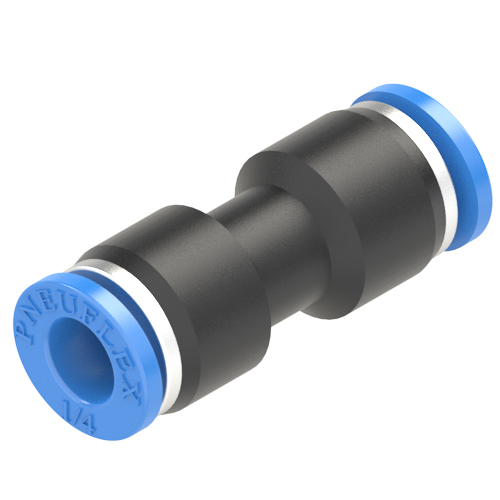

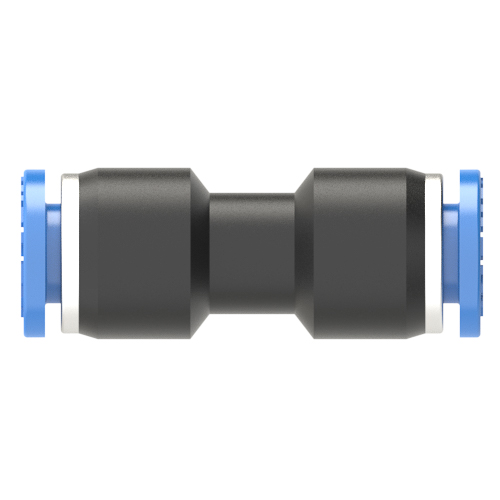

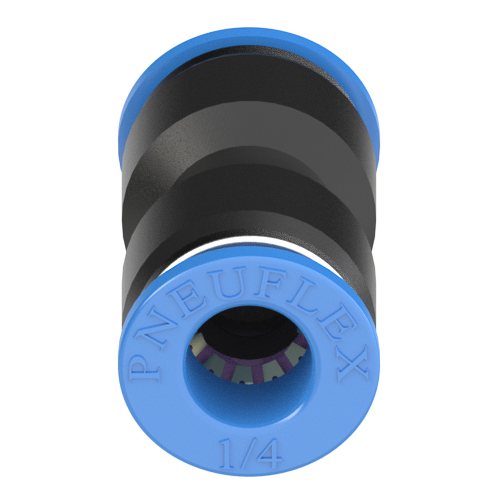

PU 1/4 | 1/4 Inch Union Straight | 1/4 Inch Push to Connect Fitting

1/4 inch union straight push to connect fitting is made of PBT plastic body and two POM plastic release buttons. 1/4 push to connect fitting is used for connecting pneumatic plastic tubing in compressed air circuits. Quick and simple tube connection and disconnection in tubing systems.

产品参数

适配管外径:	1/4 inch
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
