push to connect fittings 5 way

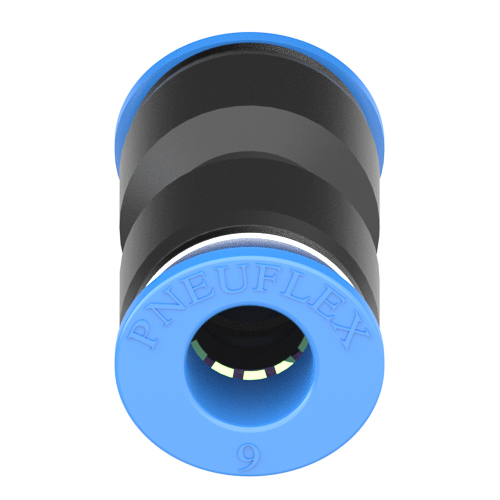

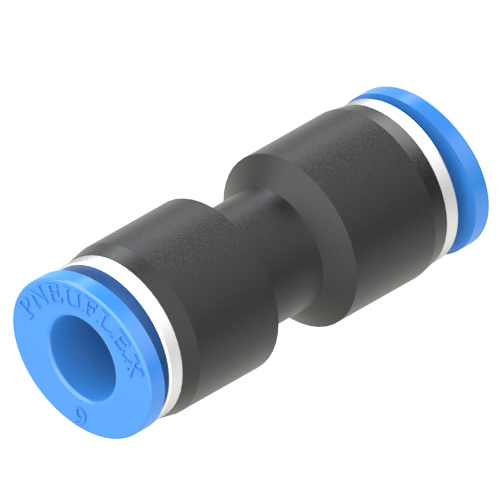

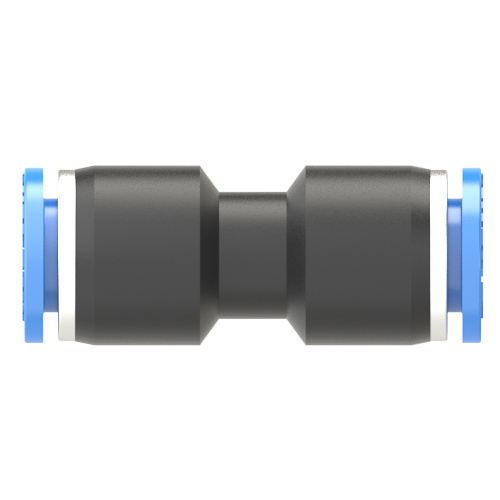

9mm union straight push to connect fitting is used for two pneumatic tubings both are outside diameter 9mm. Easily to connect and disconnect with the tubes in pneumatic applications. And the stainless steel lock claw design of 9mm push to connect fitting offers a secure connections that hold the tube firmly. Working pressure is 0-1MPa.

9mm union straight push to connect fitting 9mm push to connect fitting 9mm union straight 9mm tube push to connect fitting
产品参数
适配管外径: 9mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
产品类别: PU 插管直通
