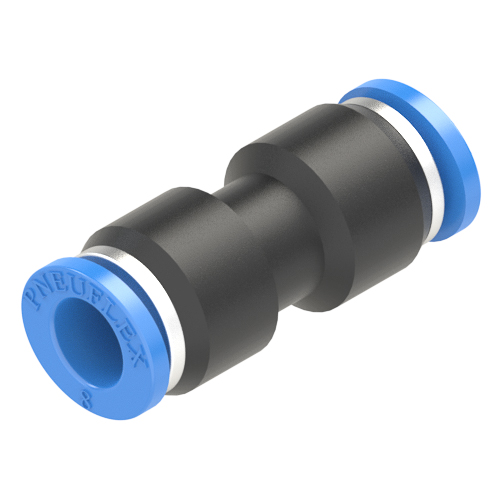

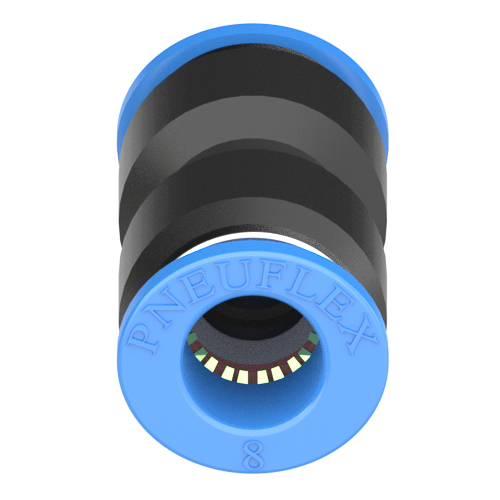

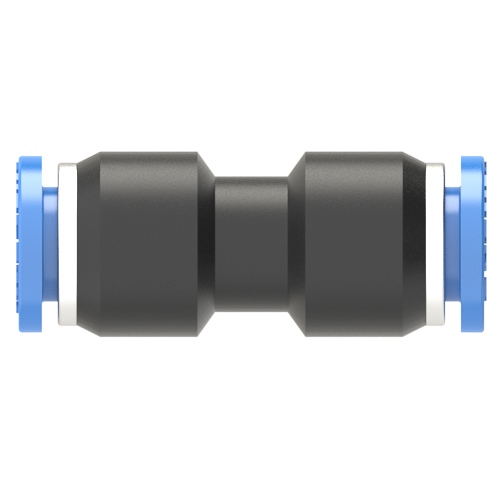

PU 08 | 8mm 插管直通 8mm 快插式气动接头 8mm 气接头
8mm union straight push to connect fitting is used for connecting two 8mm O.D tubes straightly in compressed air circuits. Release collar and stainless steel lock-claw built in the 8mm push to connect fitting allows easy connection and disconnection of tubing without causing damage to the tubing and holds the tubes firmly to offer secure connection. Light weight.
产品参数
| 适配管外径: | 8mm |
| 壳体材质: | PBT 塑料 |
| 密封圈材质: | NBR |
| 使用压力范围: | 0∼1.0MPa | 0∼150psi |
| 保证耐压力: | 3.0Mpa | 435psi |
| 使用负压范围: | -100Kpa | -29.5 In Hg |
| 环境温度及使用流体温度: | 0∼60°C | 32∼140°F (NBR) |
| 卡簧: | 不锈钢(301) |
| 适用管材质: | 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管... |
产品类别: PU 插管直通
