push to connect fittings 5 way

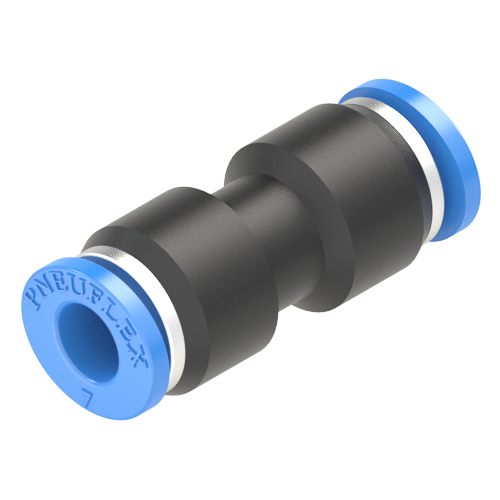

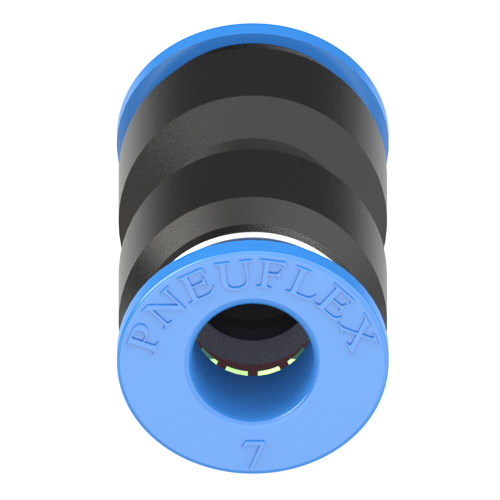

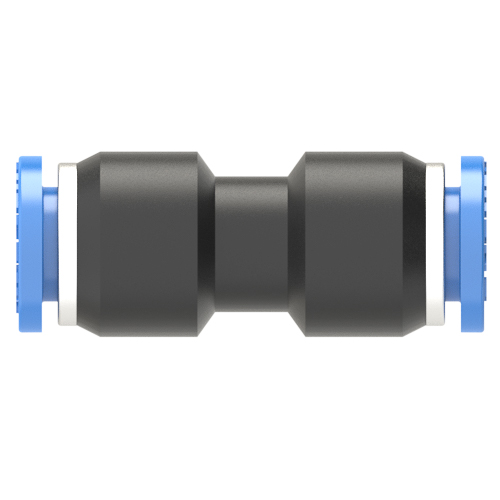

7mm union straight push to connect fitting is used to connect two 7mm diameter tubes in tubing systems. The pneumatic plastic tubing connection can be polyurethane (PU) tubing, polyethylene (PE) tubing, nylon (PA) tubing and teflon (PTFE) tubing. The body of 7mm union straight push to connect fitting is PBT plastic. The body color can be black and white to satisfy to users' demand.

7mm union straight push to connect fitting 7mm push to connect fitting 7mm union straight 7mm tube push to connect fitting
产品参数
适配管外径: 7mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
产品类别: PU 插管直通
