push to connect fittings 5 way

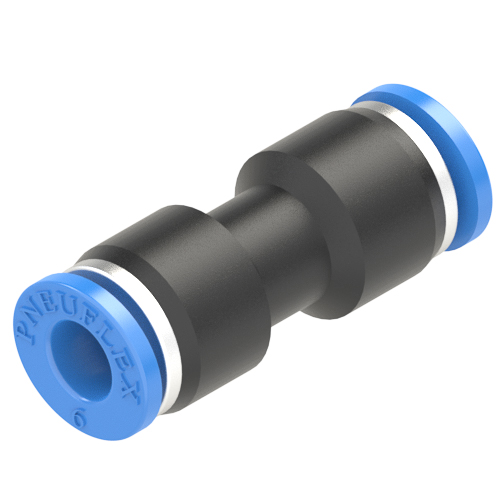

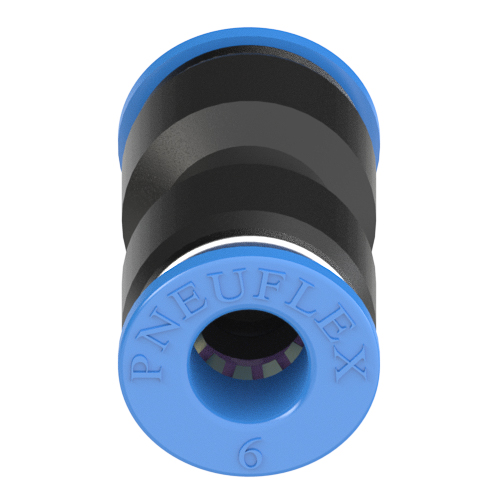

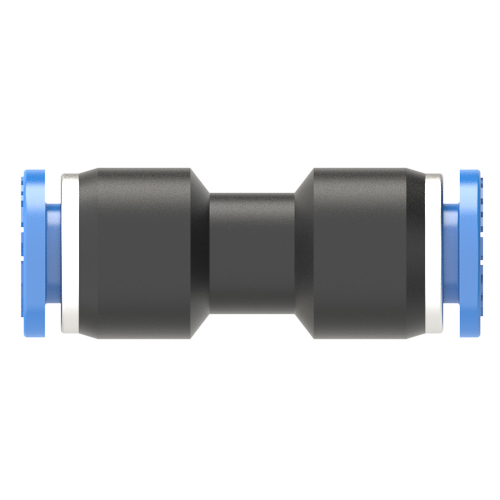

6mm union straight push to connect fitting is widely used in pneumatic applications, push to connect tube sizes are same outside diameter in both sides. The body is made of PBT plastic and release button is POM plastic. To connect, simply push the tubing until it bottoms and stainless steel lock claw to grip onto the tubing and hold it captive. To release the tubing, press the release sleeve on the fitting and you can easily pull the tube out.

6mm union straight push to connect fitting 6mm push to connect fitting 6mm union straight 6mm tube push to connect fitting
产品参数
适配管外径: 6mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
产品类别: PU 插管直通
