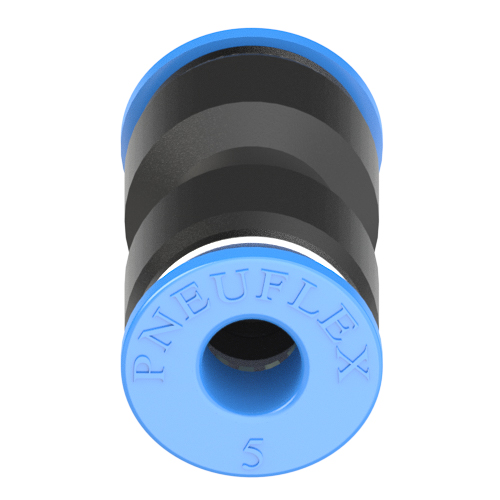

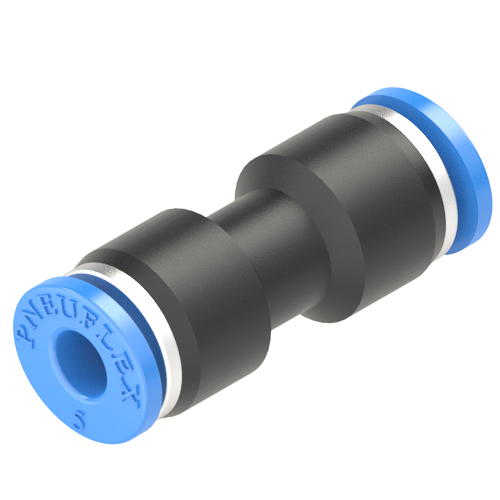

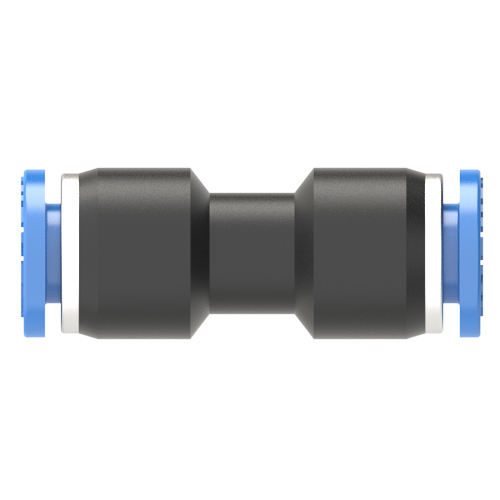

PU 05 | 5mm 插管直通 快插式气动接头 气管接头

5mm union straight push to connect fitting is used for connecting two 5mm O.D tube inline in compressed air circuits. 5mm push to connect fitting can be fitted quickly and simply by pushing the tube directly in tubing systems. To connect, simply push the tubing until it bottoms and stainless steel lock claw to grip onto the tubing and hold it firmly. To release the tubing, press the release sleeve on the fitting and you can easily pull the tube out.

产品参数

适配管外径:	5mm
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
