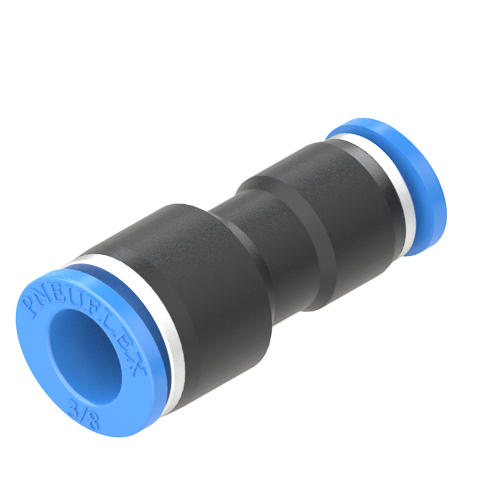

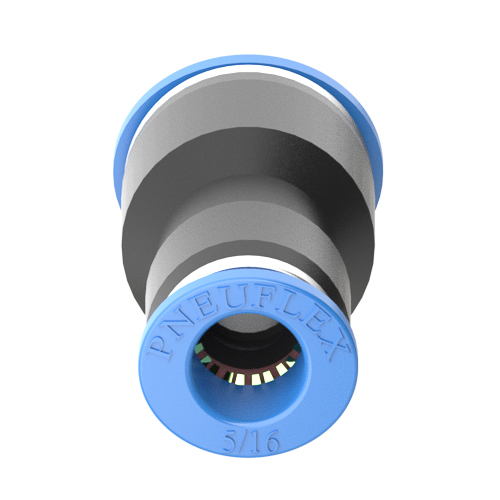

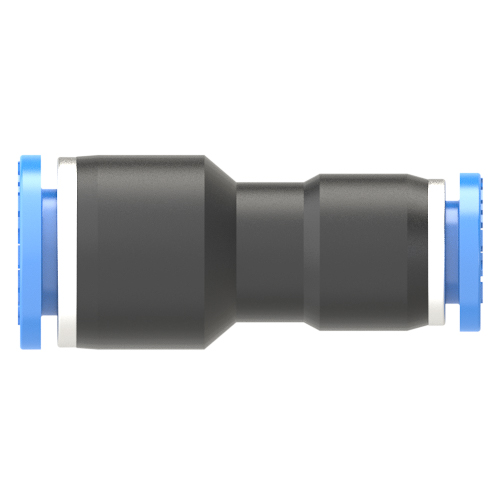

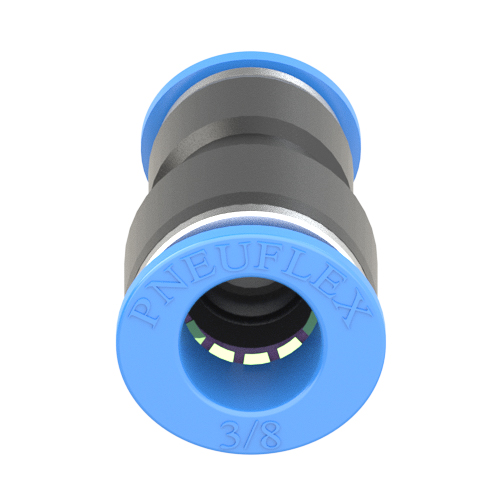

PG 3/8-5/16 | 3/8 - 5/16 Union Straight Reducer | Push to Connect Fitting

3/8" - 5/16" union straight reducer push to connect fitting is widely used in pneumatic applications and compress air circuits. Connecting two different tubing in the same direction, one tubing O.D is 3/8" and another tubing O.D is 5/16". Oval shape release sleeve and round shape release sleeve can be selection. The tubing connection can be polyurethane (PU) tubing, polyethylene (PE) tubing, nylon (PA) tubing and teflon (PTFE) tubing.

产品参数

适配管外径 O.D.1:	3/8"
适配管外径 O.D.2:	5/16"
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
