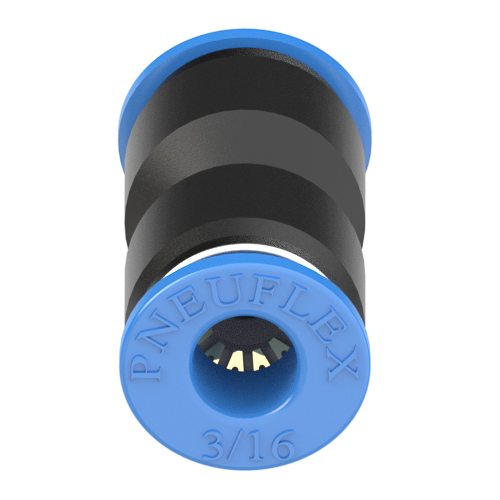

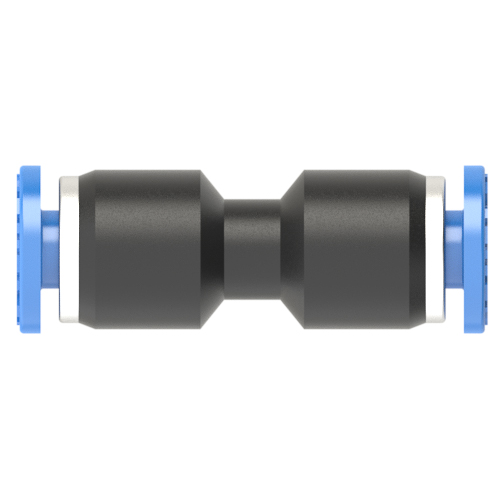

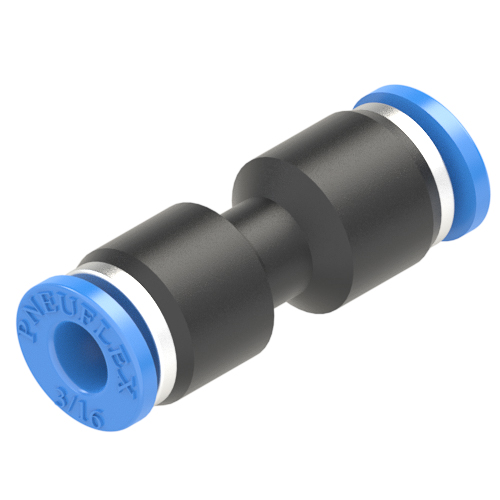

PG 3/16-5/32 | 3/16-5/32 Union Straight Reducer | Push to Connect Fitting

3/16" to 5/32" union straight reducer push to connect fitting is used for connecting a 3/16" tubing and a 5/32" tubing straightly in tubing systems.  3/16" to 5/32" push to connect fitting equipped with a convenient one touch release button that provides a sample and quick tubing connection and disconnection. The body is made of PBT plastic.

产品参数

适配管外径 O.D.1:	3/16"
适配管外径 O.D.2:	5/32"
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
