push to connect fittings 5 way

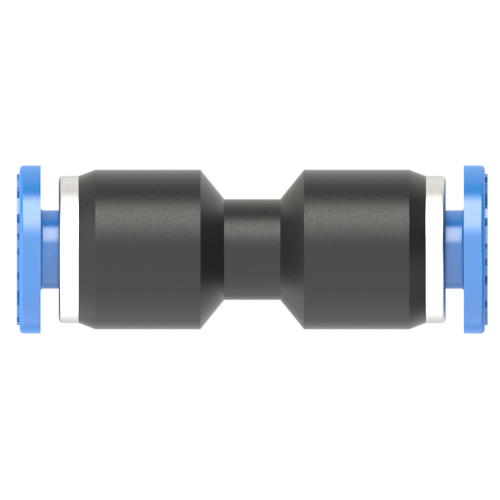

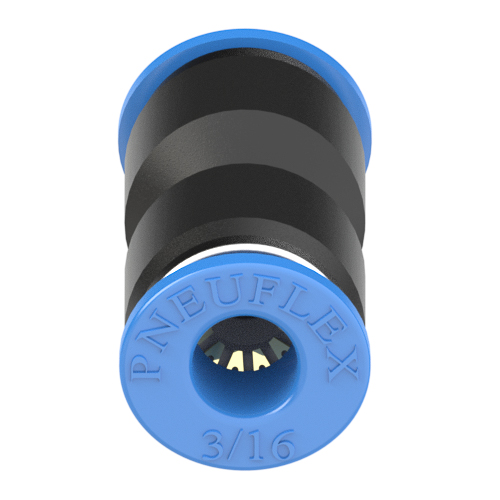

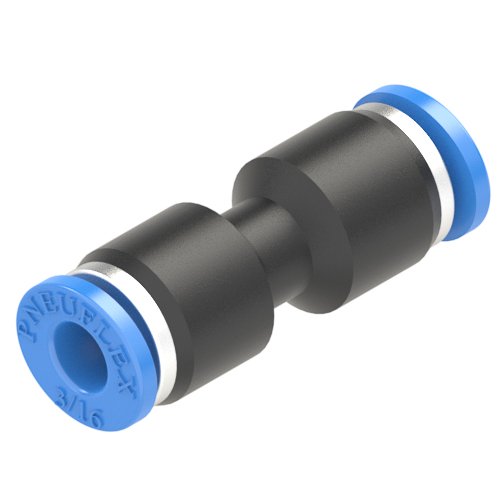

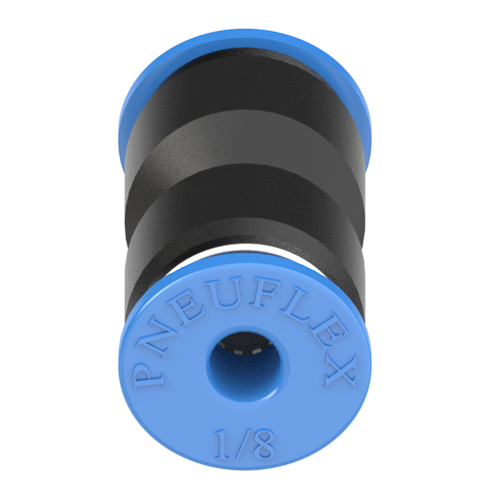

3/16" - 1/8" union straight reducer push to connect fitting connects two differnet tube size at both ports inline. One tubing connection diameter is 3/16" and another tubing connection diameter is 1/8". The pneumatic plastic tubing connection can be polyurethane (PU) tubing, polyethylene (PE) tubing, nylon (PA) tubing and teflon (PTFE) tubing. Quick and simple tube connection and disconnection.

3/16 - 1/8 union straight reducer push to connect fitting 3/16 - 1/8 tube push to connect fitting 3/16 - 1/8 union straight reducer 3/16 - 1/8  push to connect fitting
产品参数
适配管外径 O.D.1: 3/16"
适配管外径 O.D.2: 1/8"
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
