push to connect fittings 5 way

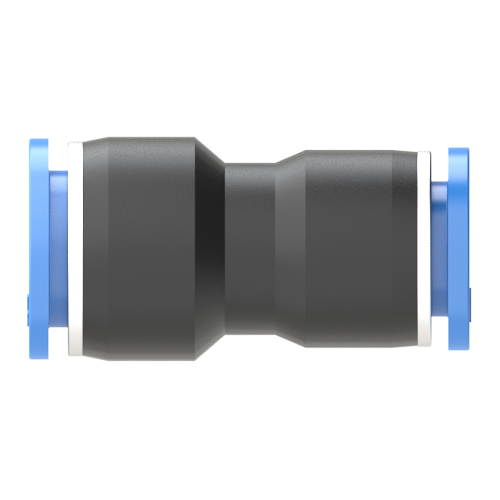

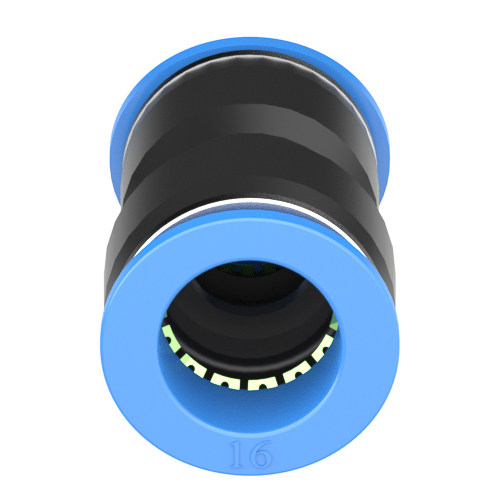

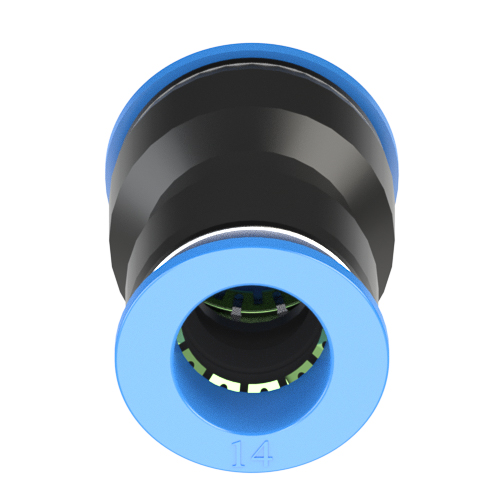

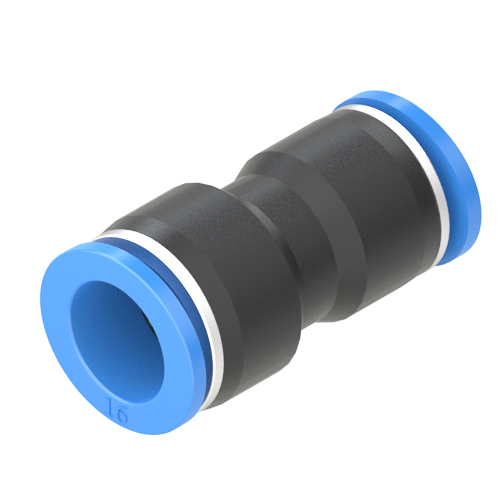

16mm - 14mm union straight reducer push to connect fitting is widely used for connecting a 16mm O.D tubing and a 14mm O.D tubing inline in compressed air circuits. 16mm to 14mm push to connect fitting equipped with a convenient one touch release button. Quick and simple tube connection and disconnection in tubing systems.

16mm - 14mm union straight reducer push to connect fitting 16mm - 14mm tube push to connect fitting 16mm - 14mm push to connect fitting 16mm - 14mm union straight reducer
产品参数
适配管外径 O.D.1: 16mm
适配管外径 O.D.2: 14mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
