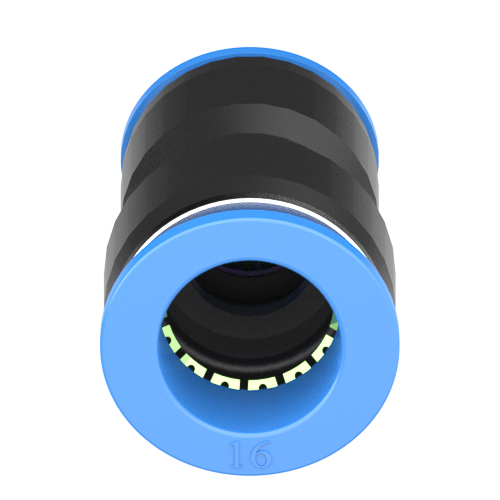

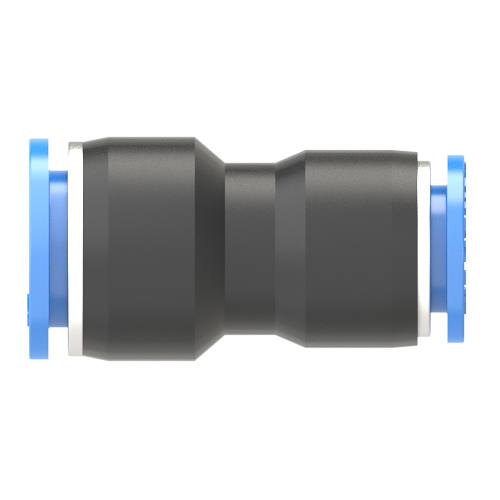

PG 16-12 | 16mm - 12mm Union Straight Reducer | Push to Connect Fitting

16mm - 12mm union straight reducer push to connect fitting is made of PBT plastic body and POM plastic release sleeve. Internal design of stainless steel lock claw offers a secure connections that hold the plastic tube firmly. One tubing connection diameter is 16mm tube and another tubing connection diameter is 12mm tube. To release the tubing, press the release sleeve on the fitting and you can easily pull the tube out. Working pressure is 0-1MPa.

产品参数

适配管外径 O.D.1:	16mm
适配管外径 O.D.2:	12mm
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
