push to connect fittings 5 way

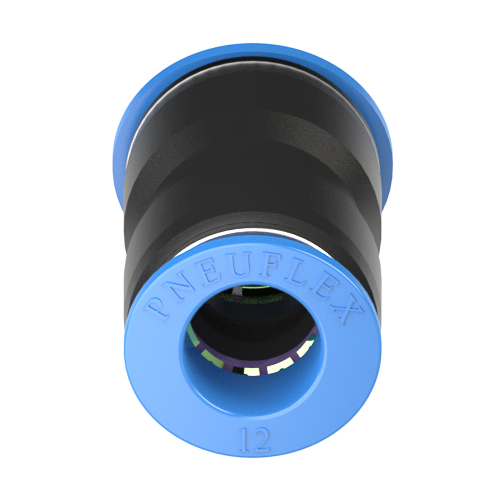

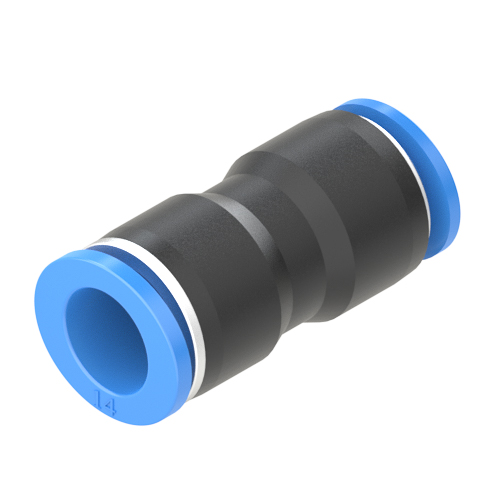

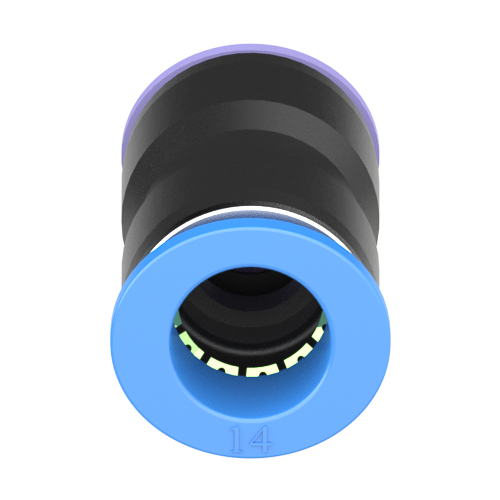

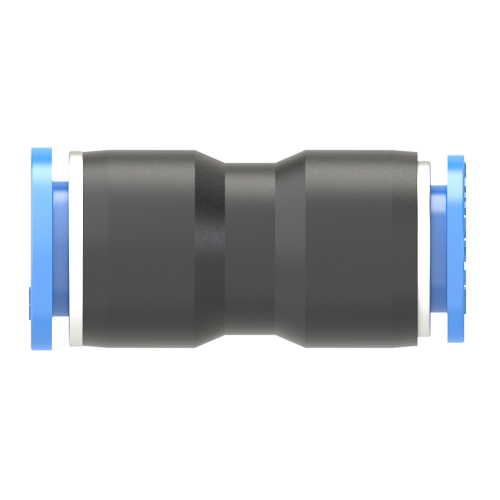

14mm - 12mm union straight reducer push to connect fitting is used for connect two different diameter tubings in the same direction. One tubing connection diameter is 14mm and another tubing connection diameter is 12mm. 14mm to 12mm push to connect fitting can be fitted quickly and simply by pushing the tube directly in tubing systems. The pneumatic  tubing connection can be PU tubing, PE tubing, nylon tubing and teflon tubing.

14mm - 12mm union straight reducer push to connect fitting 14mm - 12mm push to connect fitting 14mm - 12mm union straight reducer 14mm - 12mm tube push to connect fitting
产品参数
适配管外径 O.D.1: 14mm
适配管外径 O.D.2: 12mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
