push to connect fittings 5 way

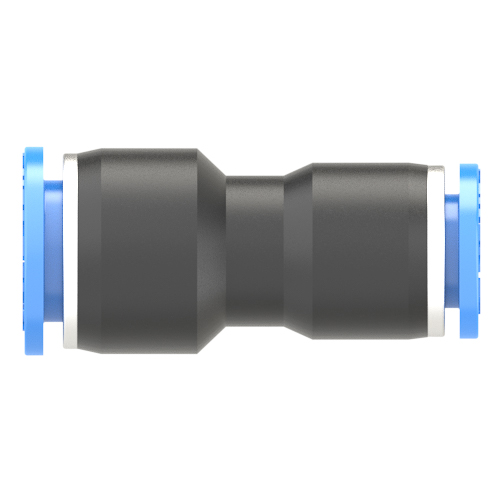

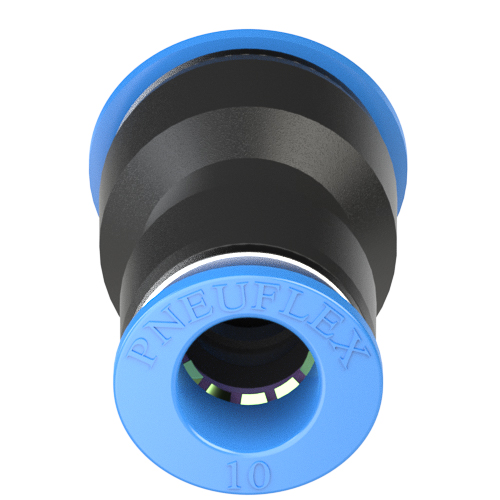

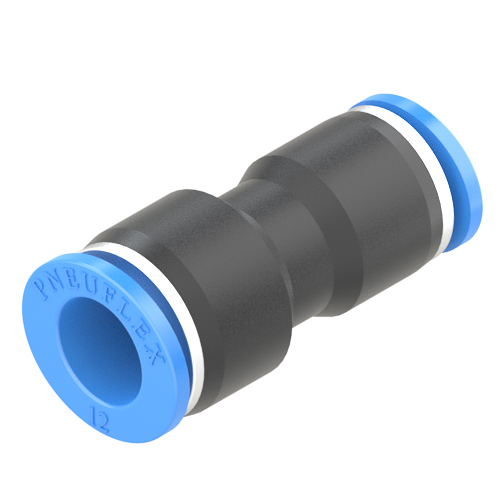

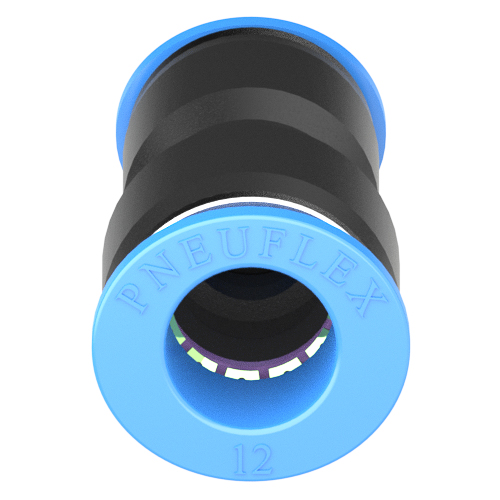

12mm to 10mm union straight reducer push to connect fitting is widely used in pneumatic applications and tubing systems. 12mm - 10mm union reducer push to connect fitting connects a 12mm O.D tubing and a 10mm O.D tubing straightly. The stainless steel lock claw design ensures superior clamping with various types of tubing. To connect, simply push the tubing until it bottoms and stainless steel teeth to grip onto the tubing and hold it captive. To release the tubing, press the release sleeve on the fitting and you can easily pull the tube out.

12mm to 10mm union straight reducer push to connect fitting 12mm to 10mm push to connect fitting 12mm to 10mm tube push to connect fitting 12mm to 10mm union straight reducer
产品参数
适配管外径 O.D.1: 12mm
适配管外径 O.D.2: 10mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
