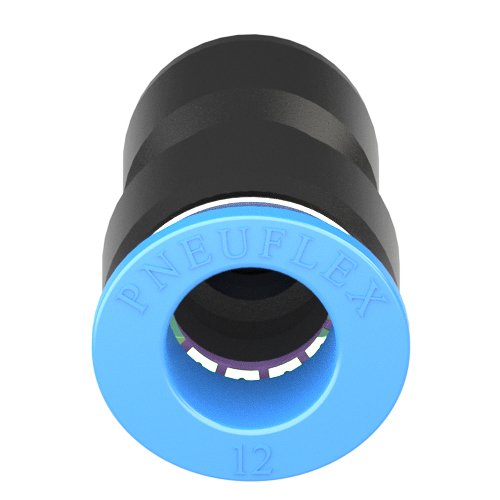

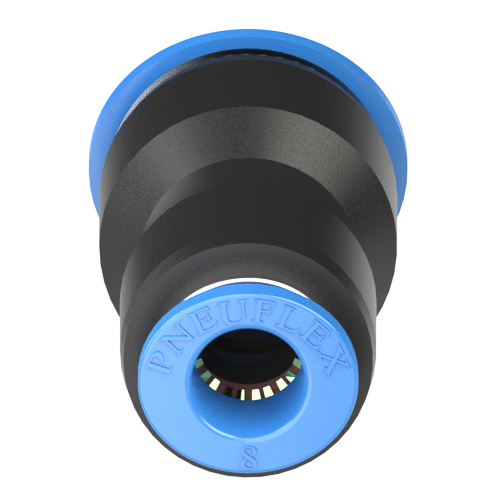

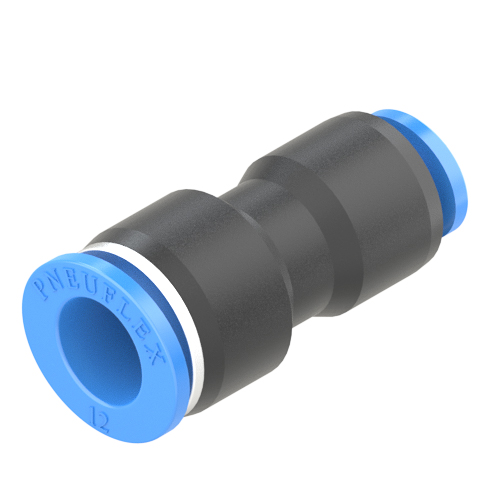

PG 12-08 | 12mm - 8mm Union Straight Reducer | Push to Connect Fitting

12mm - 8mm union straight reducer push to connect fitting is used for connecting two tubes of different size inline, one port tube size is 12mm and another port tube size is 8mm. 12mm tube to 8mm tube push to connect fitting is easy to install and release in tubing systems.  The stainless steel lock claw design ensures superior clamping with various types of tubing such as polyethylene tubing, polyurethane tubing, nylon tubing and teflon tubing.

产品参数

适配管外径 O.D.1:	12mm
适配管外径 O.D.2:	8mm
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
