push to connect fittings 5 way

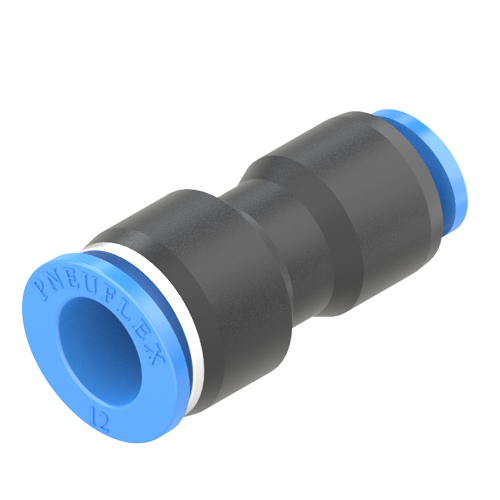

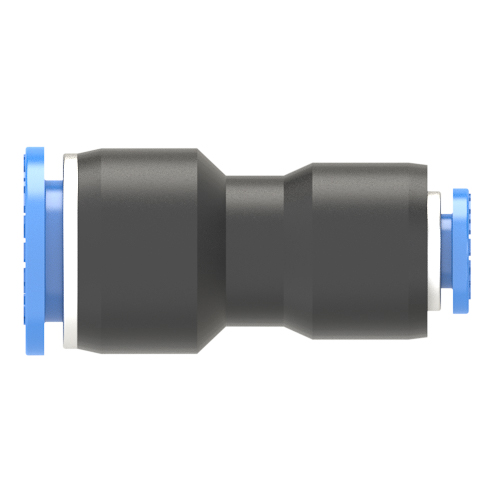

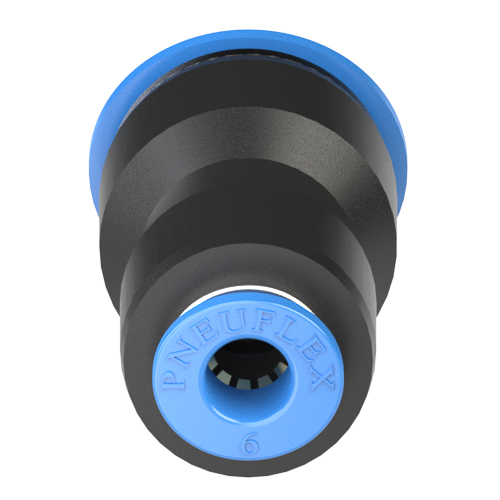

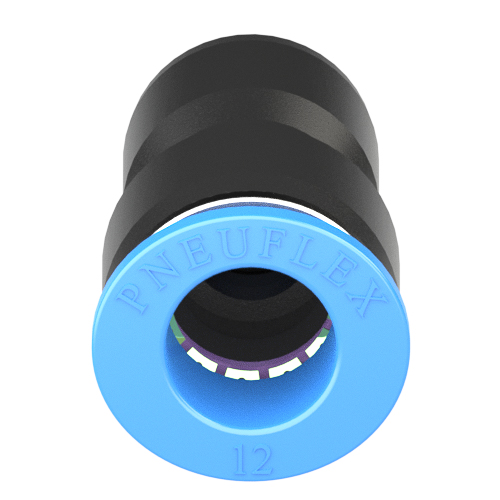

12mm - 6mm union straight reducer push to connect fitting is used for connecting two different size pneumatic plastic tubings in compressed air circuits. One tube connection is 12mm and another tube connection is 6mm. The stainless steel lock claw design of 12mm to 6mm push to connect fitting offers a secure connections that hold the tube firmly. To release the tubing, press the release sleeve on the fitting and you can easily pull the tube out.

12mm - 6mm union straight reducer push to connect fitting 12mm - 6mm tube push to connect fitting 12mm - 6mm push to connect fitting 12mm - 6mm push to connect fitting
产品参数
适配管外径 O.D.1: 12mm
适配管外径 O.D.2: 6mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
