push to connect fittings 5 way

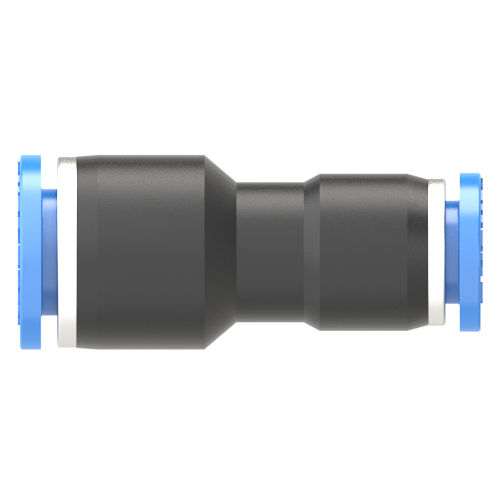

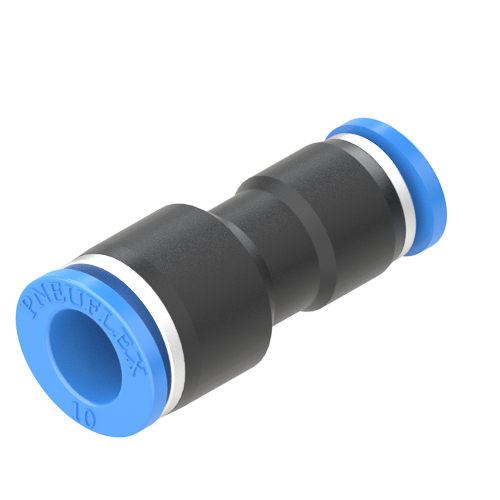

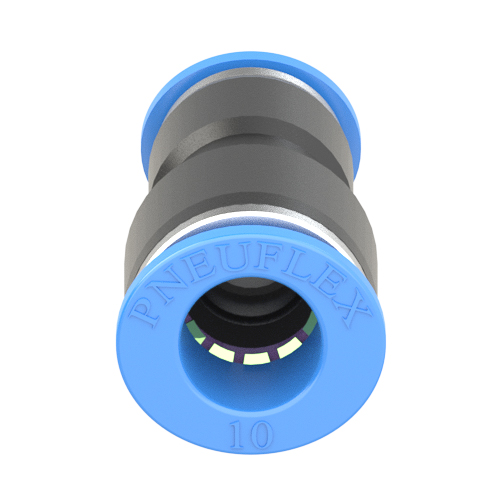

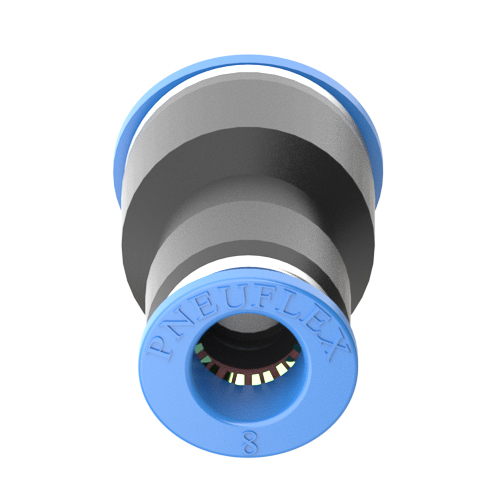

10mm - 8mm union straight reducer push to connect fitting is widely used in pneumatic applications, which is used for connecting two different tube size at both end ports. 10mm to 8mm push to connect fitting equipped with a convenient one touch release button that provides a easy and quick tubing connection and disconnection.

10mm - 8mm union straight reducer push to connect fitting 10mm - 8mm union straight reducer 10mm - 8mm tube push to connect fitting 10mm - 8mm push to connect fitting
产品参数
适配管外径 O.D.1: 10mm
适配管外径 O.D.2: 8mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
