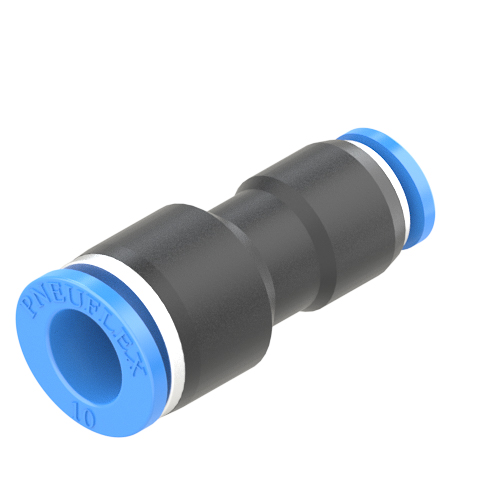

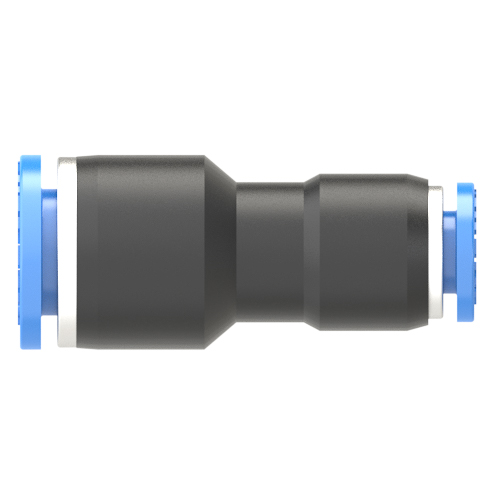

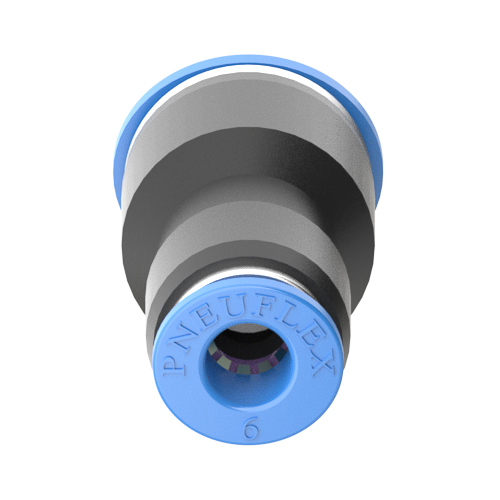

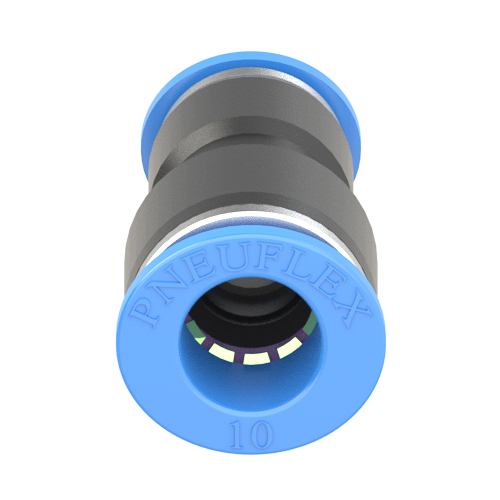

PG 10-06 | 10mm -6mm Union Straight Reducer | Push to Connect Fitting

10mm - 6mm union straight reducer push to connect fitting is used for connecting two tubings of different size in the same direction. 10mm to 6mm push to connect fitting can be fitted quickly and simply by pushing the tube directly. The shape of release sleeve can be oval shape and round shape. The body is made of PBT plastic and the release button is made of POM plastic.

产品参数

适配管外径 O.D.1:	10mm
适配管外径 O.D.2:	6mm
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
