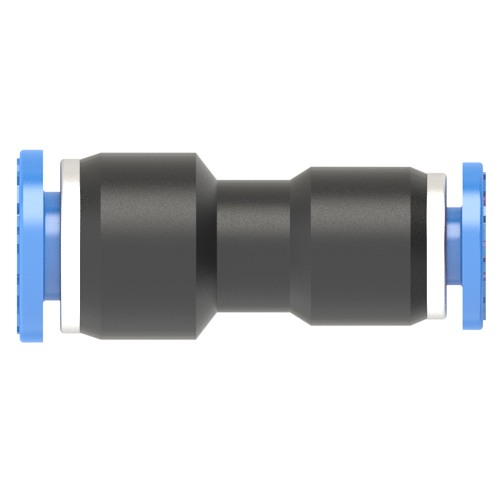

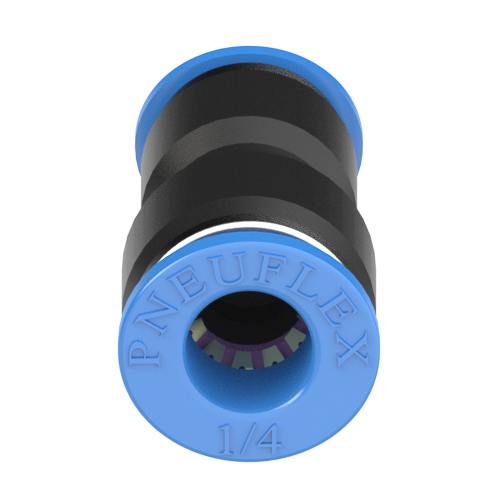

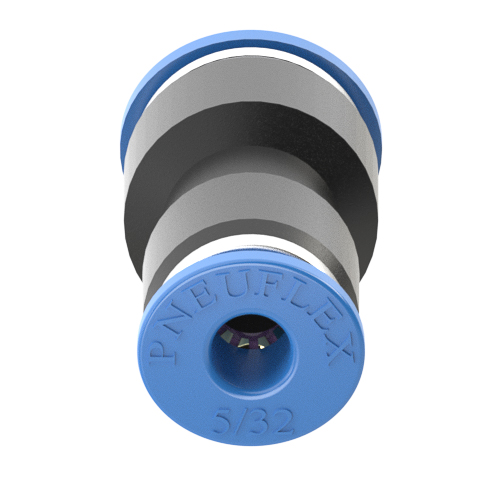

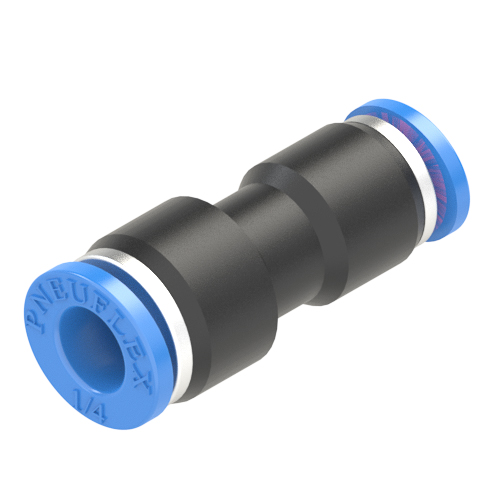

PG 1/4-5/32 | 1/4 - 5/32 Union Straight Reducer | Push to Connect Fitting

1/4" to 5/32" union straight reducer push to connect fitting is widely used in tubing systems and pneumatic applications. One port of tubing connection is 1/4 inch and another port tubing connection is 5/32 inch. The pneumatic plastic tubing connection can be polyurethane (PU) tubing, polyethylene (PE) tubing, nylon (PA) tubing and teflon (PTFE) tubing.

产品参数

适配管外径 O.D.1:	1/4"
适配管外径 O.D.2:	5/32"
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...

询问价格
