push to connect fittings 5 way

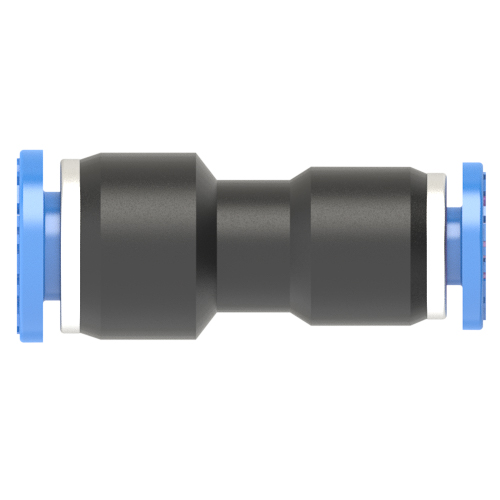

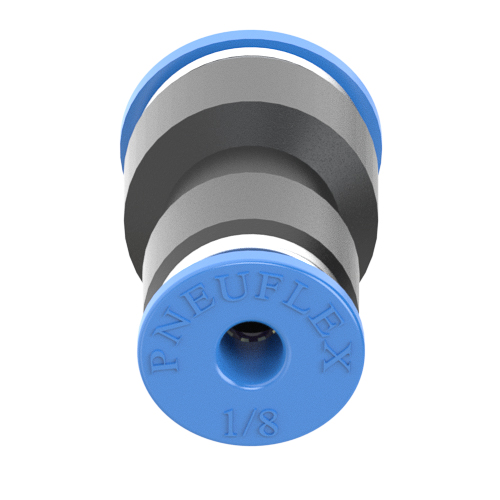

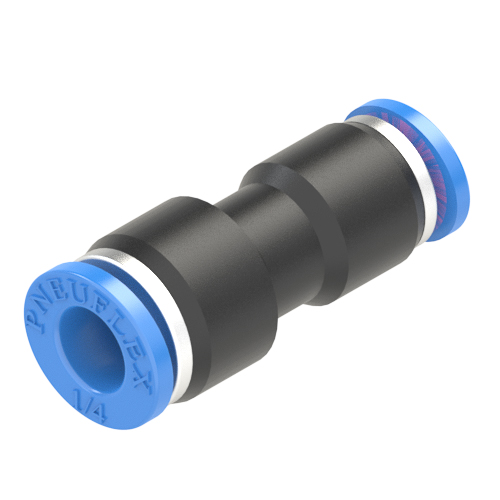

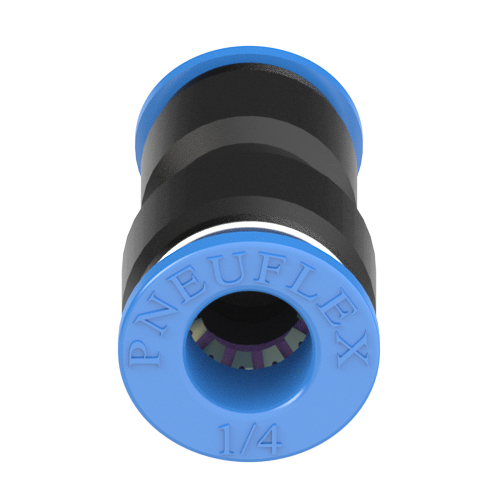

1/4" to 1/8" union straight reducer push to connect fitting is used for connecting two different size plastic tubes in the same direction. One tube connection is 1/4" tube and another tube connection is 1/8" tube. 1/4" to 1/8" push to connect fitting is easy to install and release and internal design of stainless steel lock claw offers a secure connections that hold the plastic tube firmly.

1/4 to 1/8 union straight reducer push to connect fitting 1/4 to 1/8 union straight reducer 1/4 to 1/8 tube push to connect fitting 1/4 to 1/8 tube push to connect fitting
产品参数
适配管外径 O.D.1: 1/4"
适配管外径 O.D.2: 1/8"
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
