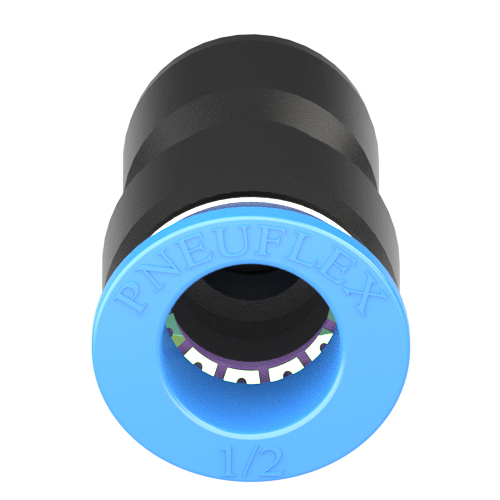

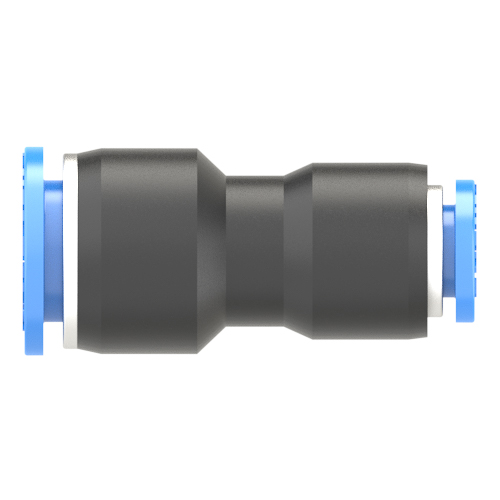

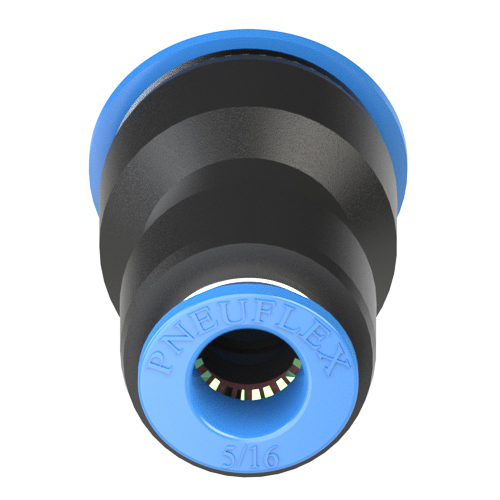

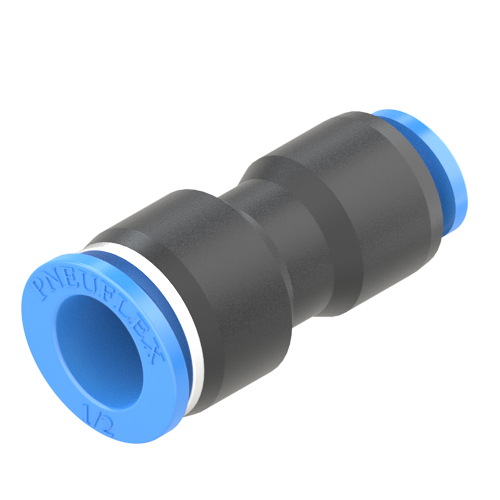

PG 1/2-5/16 | 1/2 - 5/16 Union Straight Reducer | Push to Connect Fitting

1/2" - 5/16" union straight reducer push to connect fitting is connecting two tubings that are different tubing O.D size. One tubing connection is 1/2" O.D and another tubing connection is 5/16" O.D. The stainless steel lock claw design ensures superior clamping with various types of tubing such as polyethylene tubing, polyurethane tubing, nylon tubing and teflon tubing.

产品参数

适配管外径 O.D.1:	1/2"
适配管外径 O.D.2:	5/16"
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
