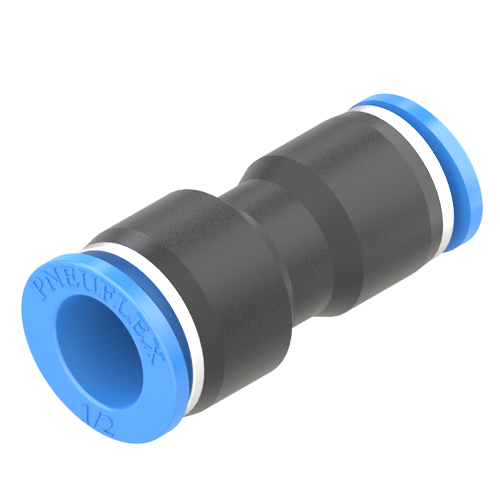

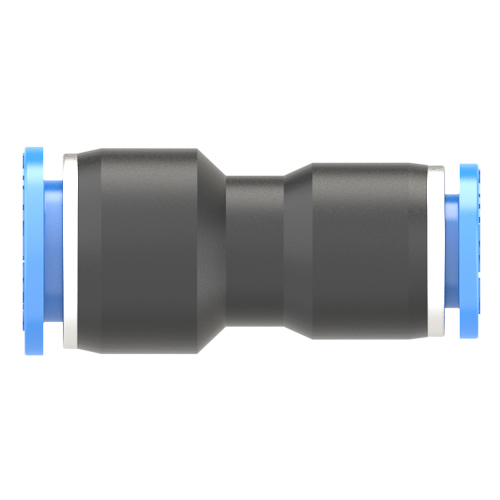

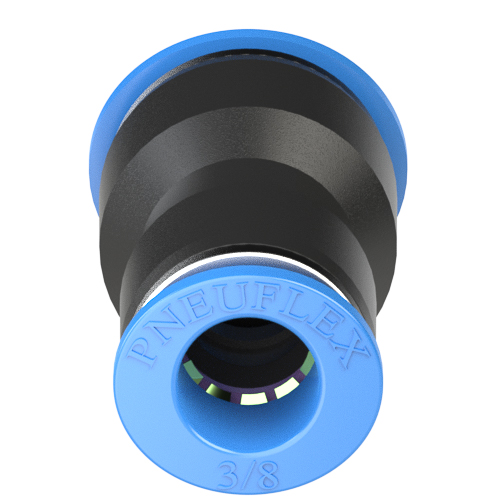

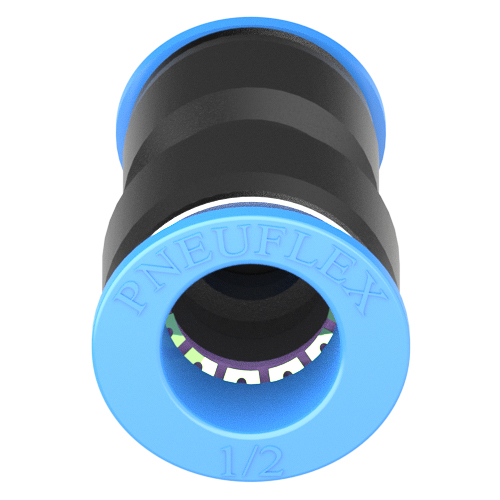

PG 1/2-3/8 | 1/2 - 3/8 Union Straight Reducer | Push to Connect Fitting

1/2 to 3/8 inch union straight reducer push to connect fitting is used for connecting two different plastic tubes straightly in compressed air circuits. One tubing connection size is 1/2" and another tubing connection size is 3/8". To connect, simply push the tubing until it bottoms and stainless steel teeth to grip onto the tubing and hold it captive. To release the tubing, press the release sleeve on the fitting and you can easily pull the tube out.

产品参数

适配管外径 O.D.1:	1/2"
适配管外径 O.D.2:	3/8"
适用流体:	压缩空气、真空、水(未冻结)
壳体材质:	PBT 塑料
密封圈材质:	NBR
使用压力范围:	0∼1.0MPa | 0∼150psi
保证耐压力:	3.0Mpa | 435psi
使用负压范围:	-100Kpa | -29.5 In Hg
环境温度及使用流体温度:	0∼60°C | 32∼140°F (NBR)
卡簧:	不锈钢(301)
适用管材质:	聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
