push to connect fittings 5 way

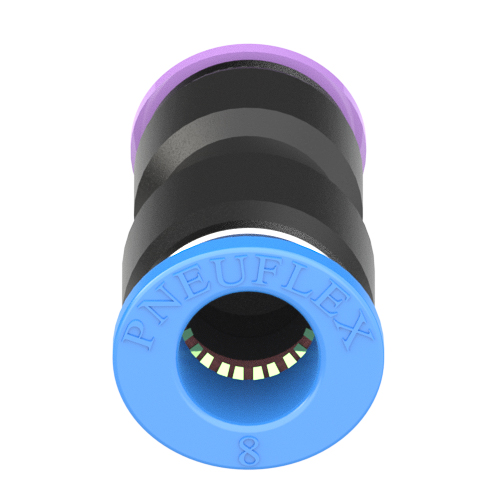

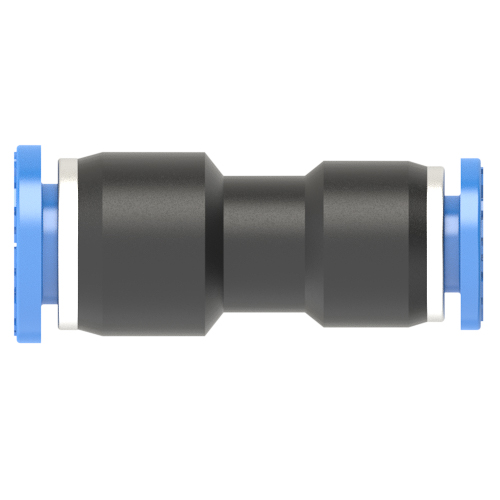

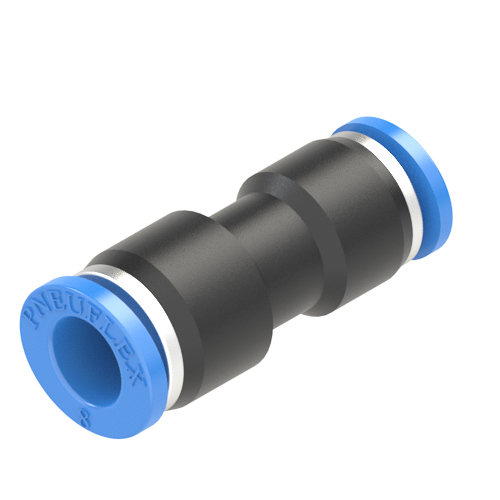

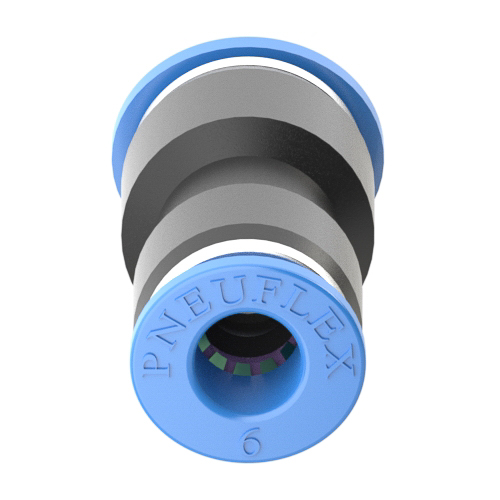

8mm - 6mm union straight reducer push to connect fitting is widely used in pneumatic hose systems. Tubing connections are different size, one is 8mm diameter tubing and another is 6mm diameter tubing.  The body of 8mm to 6mm push to connect fitting is made of PBT plastic. Internal design of stainless steel collect offers a secure connections that hold the plastic tube firmly. Working pressure is 0-1MPa.


8mm - 6mm union straight reducer push to connect fitting 8mm - 6mm push to connect fitting 8mm - 6mm tube push to connect fitting 8mm - 6mm union straight reducer
产品参数
适配管外径 O.D.1: 8mm
适配管外径 O.D.2: 6mm
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
