push to connect fittings 5 way

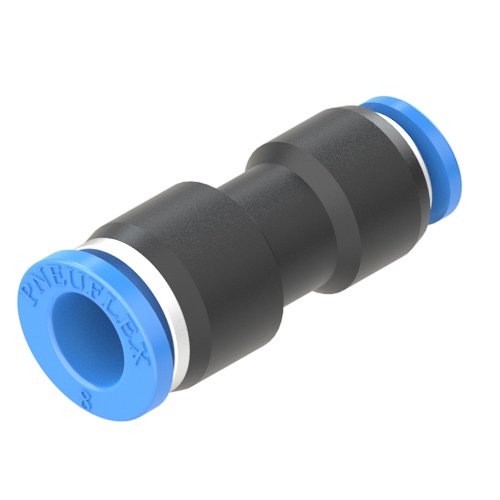

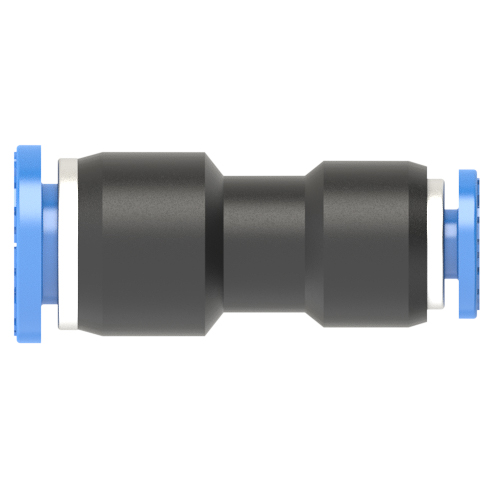

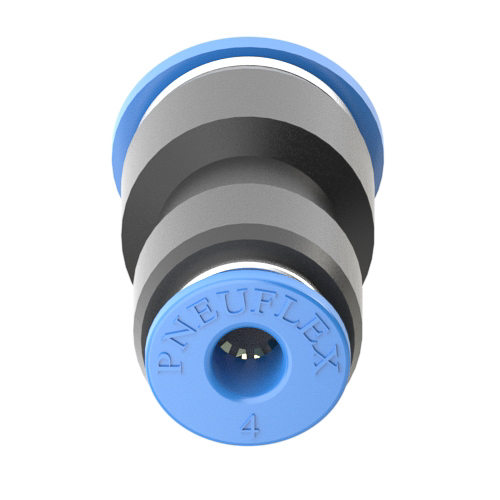

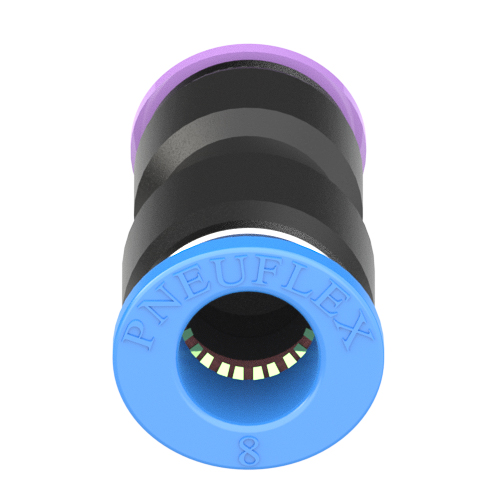

8mm - 4mm union straight reducer push to connect fitting is used for connecting two tubings, push in a 8mm diameter tubing in one port and push in 4mm diameter tubing in another side. The pneumatic plastic tubing connection of 8mm to 4mm push to connect fitting can be polyurethane (PU) tubing, nylon (PA) tubing,  polyethylene (PE) tubing and teflon (PTFE) tubing.

8mm - 4mm union straight reducer push to connect fitting 8mm - 4mm tube push to connect fitting 8mm - 4mm push to connect fitting 8mm - 4mm union straight reducer
产品参数
适配管外径 O.D.1: 8mm
适配管外径 O.D.2: 4mm
适用流体: 压缩空气、真空、水(未冻结)
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
