push to connect fittings 5 way

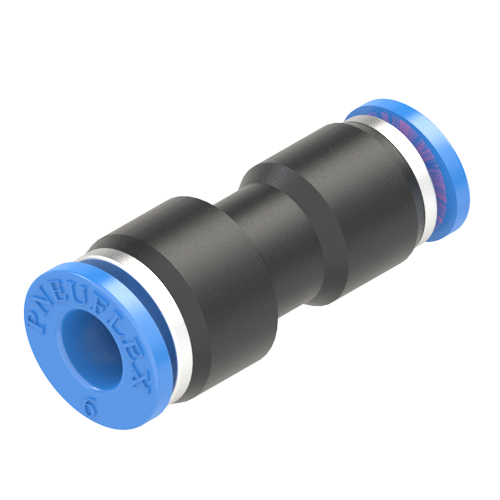

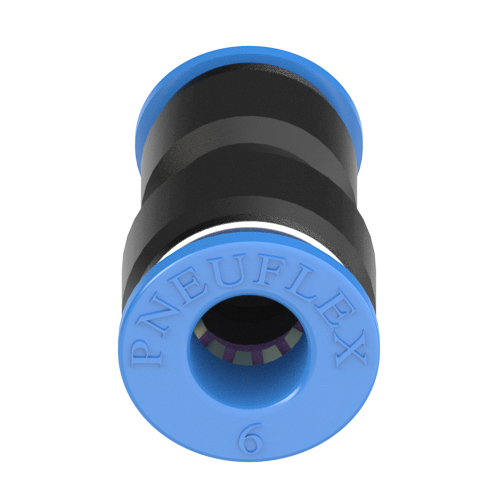

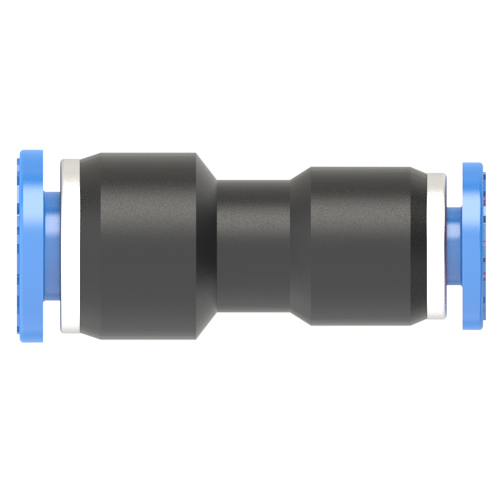

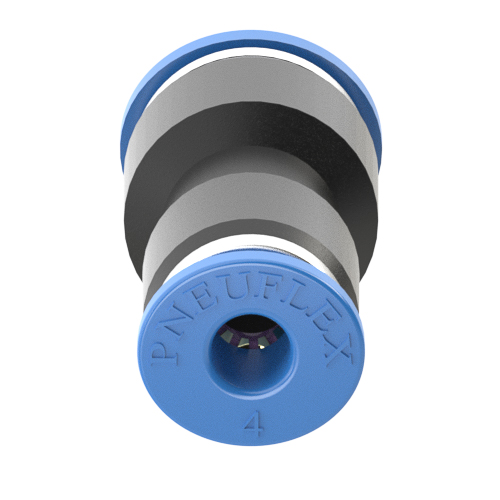

6mm - 4mm union straight reducer push to connect fitting is used for connecting two tubings of different tubing diameter straightly. One tubing connection is 6mm O.D and another tubing connection is 4mm O.D. 6mm to 4mm push to connect fitting is widely used in pneumatic applications and compressed air circuits. The pneumatic plastic tubing connection can be polyurethane (PU) tubing, polyethylene (PE) tubing, nylon (PA) tubing and teflon (PTFE) tubing.

6mm - 4mm union straight reducer push to connect fitting 6mm - 4mm tube union straight reducer push to connect fitting 6mm - 4mm  union straight reducer 6mm - 4mm push to connect fitting
产品参数
适配管外径 O.D.1: 6mm
适配管外径 O.D.2: 4mm
适用流体: 压缩空气、真空、水(未冻结)
壳体材质: PBT 塑料
密封圈材质: NBR
使用压力范围: 0∼1.0MPa | 0∼150psi
保证耐压力: 3.0Mpa | 435psi
使用负压范围: -100Kpa | -29.5 In Hg
环境温度及使用流体温度: 0∼60°C | 32∼140°F (NBR)
卡簧: 不锈钢(301)
适用管材质: 聚氨酯管 / 尼龙管 / PE管 / 铁氟龙管...
询问价格
