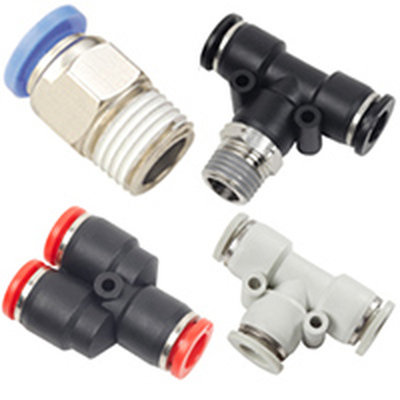

As a kind of pneumatic fittings, composite push to connect fittings (push in fittings) from Pneuflex provide easy connection and disconnection tube without causing damage to the tube. Composite push to connect fittings become essential parts in pneumatic and fluid system. Composite push to connect fittings are available in a variety of types, moulds, sizes and thread types to satisfy various metric and inch tube demands. Composite push to connect fittings from Pneuflex could accommodate both metric size tubing and inch size tubing that are made from polyurethane, polyethylene and nylon. Composite push to connect fittings are ideal for general pneumatic industrial applications.

Composite Push to Connect Fittings features

• Optional shapes of Release Sleeve: Oval and Round Release Sleeve
• Multiple colors of Release Sleeve: Blue, Black, Orange, Red, Orange, Gray
• Accommodate kinds of connection thread type: R (PT, BSPT), G (BSPP), NPT, UNF, UNC, Metric
• Accommodate metric size tubing O.D: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm
• Accommodate inch size tubing O.D: 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8"
• Proof pressure: up to 3.0Mpa (435psi)

All pneumatic push to connect fittings from Pneuflex are RoHS compliant
